Izintambo Zensimbi Ezisezingeni Eliphezulu Ze-Elevator

Izintambo Zensimbi Zensimbi Yezinga Eliphezulu Zekhwalithi Ephakeme Isithombe Esifakiwe

Incazelo emfushane:

Amakheshi amancane kakhulu asetshenziselwa ukwenza izintambo zezintambo. Ezifundeni zokuhlala zezentengiselwano, imininingwane yentambo yekheshi ngokuvamile ingu-8*19S+FC-8mm, 8*19S+FC-10mm.

Thumela i-imeyili kithi

Imininingwane Yomkhiqizo

Omaka bomkhiqizo

Amapharamitha womkhiqizo

1.Lokhu kucaciswa kulungele intambo yocingo lwe-speed limiter, isivinini esiphansi, ikheshi eliphansi lomthwalo

2.Singakwazi futhi ukwenza ngokwezifiso ngokuvumelana nezidingo zakho.

I-Nominal Rope Diameter	6*19S+PP	Ubuncane Bomthwalo Owephukayo
	Isisindo esilinganiselwe	I-Dual Tensile, uMpa		Single Tensile,Mpa
	Isisindo esilinganiselwe	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

1.I-Natural fiber core(NFC): Ifanele intambo yocingo yomshini wokudonsa onesivinini esilinganiselwe ≤ 2.0m/s

2.Ubude besakhiwo≤80M

I-Nominal Rope Diameter	8*19S+NFC	Ubuncane Bomthwalo Owephukayo
	Isisindo esilinganiselwe	I-Dual Tensile, uMpa		Single Tensile,Mpa
	Isisindo esilinganiselwe	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Okwe-IWRC, isivinini>4.0 m/s, Ubude besakhiwo> 100m

2.Okwe-IWRF,2.0< isivinini≤4.0m/ s, Ukuphakama kwesakhiwo≤100m

I-Nominal Rope Diameter	8*19S		Ubuncane Bomthwalo Owephukayo
	Isisindo esilinganiselwe		Single Tensile,Mpa
	Isisindo esilinganiselwe		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Ulwazi Lomkhiqizo

Amakheshi amancane kakhulu asetshenziselwa ukwenza izintambo zezintambo. Ezifundeni zokuhlala zezentengiselwano, imininingwane yentambo yekheshi ngokuvamile ingu-8*19S+FC-8mm, 8*19S+FC-10mm. Inxanxathela yezitolo zisebenzisa imininingwane yentambo yekheshi emikhudlwana engu-12mm, 13mm, kanye nezicaciso zezintambo zensimbi yekheshi engu-12mm, 13mm, no-16mm ububanzi.

Eku-odeni intambo yensimbi, uyacelwa ukuthi usinikeze ulwazi oluphelele njengoba kushiwo ngezansi:

1. Inhloso: Iyiphi intambo ezosetshenziselwa;

2. Usayizi:Ububanzi bentambo ngamamilimitha noma amayintshi;

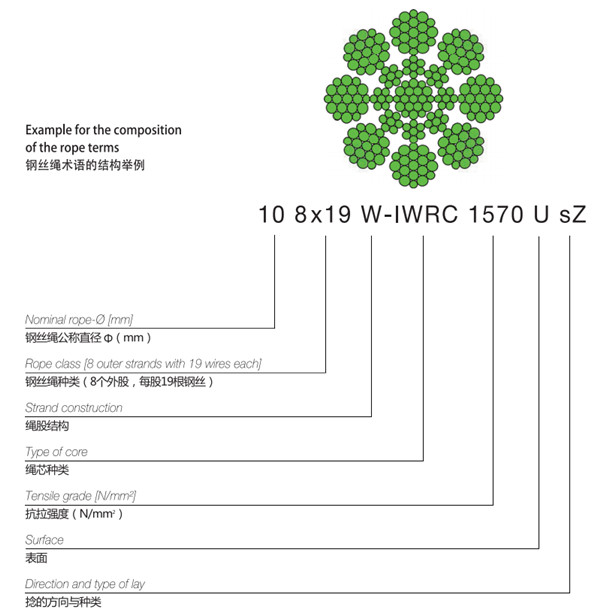

3. Ukwakhiwa:Inani lezintambo, inombolo yezintambo ngomucu ngamunye kanye nohlobo lokwakhiwa kwesitendi;

4. Uhlobo Lwe-Core: I-Fiber core(FC), i-independent wire rope core(IWRC)noma i-Independent wire strand core(IWSC);

5. Ukulala: Ukulala okujwayelekile kwesokudla, ukulala okujwayelekile kwesobunxele, ukulala kwesokudla, ukulala kwesobunxele,

6. Material:Bright(angavalized),insimbi noma insimbi engagqwali;

7. Ibanga Locingo: Amandla aqinile wezintambo;

8. Ukugcotshwa: Ukuthi ukugcotshwa kuyafunwa noma cha futhi kuyadingeka okokugcoba;

9. Ubude: ubude bentambo yocingo;

10. Ukupakisha: Ngamakhoyili asongwe ngephepha lamafutha nendwangu ye-hessian noma kumasondo okhuni;

11. Ubungako: Ngenani lamakhoyili noma amasondo ngobude noma isisindo;

12. Amazwana: Izimpawu zokuthutha kanye nanoma yiziphi ezinye izidingo ezikhethekile.

Ngesikhathi sokusebenza isikhathi eside, amafutha okugcoba entanjeni yocingo azokwehla kancane kancane. Ngakho-ke, kuyadingeka ukuthi intambo yocingo igcotshwe njalo, enganweba impilo yesevisi yentambo yocingo, futhi inciphise ukuguga nokuvimbela ukugqwala ngokufaka kabusha. Uma kuqhathaniswa nentambo yocingo egcotshwe ngokugcwele, impilo yesevisi yentambo yocingo eyomile ingancishiswa kufika ku-80%! Ukulungiswa kabusha kwentambo yocingo kudlala indima ebaluleke kakhulu. Ngokuvamile sikhetha uwoyela wokugcoba i-T86, okuwuketshezi oluncane kakhulu olungangena kalula ngaphakathi kwentambo yocingo. Idinga kuphela ibhulashi noma umgqomo ophathwayo welitha elingu-1 ukuwufutha. Indawo yokusetshenziswa kufanele ibe lapho intambo yocingo ithinta isithungu sokudonsa noma isondo eliqondisayo, ukuze okokuthambisa kwentambo yocingo kugeleze entanjeni yocingo kalula.
