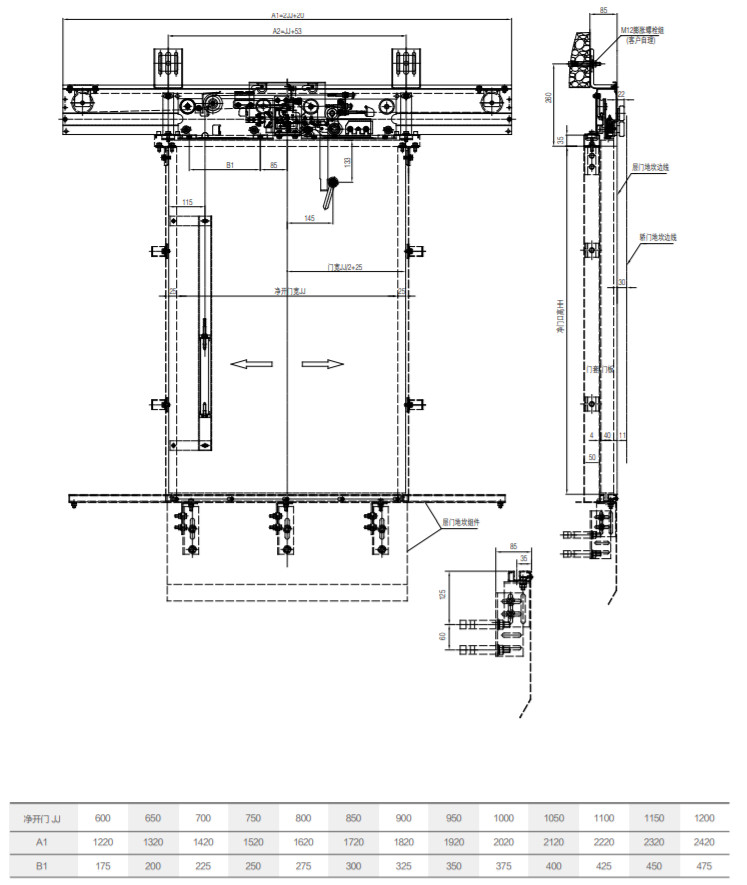

2-Leafs Center Ukuvula Idivayisi Yomnyango Wokuhlala THY-LD-B
1. Indlela yokuvula ukuvula iphaneli yomnyango futhi uphumelele ukuhlolwa komthelela we-pendulum ongu-45Kg.
2. Umnyango uphoqeleka ukuba uvale ngesando esinzima, futhi isando esindayo kanye nethubhu yokuqondisa zibekwe ohlangothini lwangaphakathi lomnyango wokufika.
3. Isikhiya somnyango siphumelele ukuhlolwa kwe-National Elevator Inspection Centre futhi sathola isitifiketi se-CE ne-CU-TR.
4. I-voltage esebenzayo yokukhiya umnyango: ≤ AC230V, ≤ DC110V.
1. Ukufakwa kwe-sill kanye nekhava yomnyango
1.1. Nquma indawo yokungena nokuphuma kwe-sill ngokusho kobukhulu be-hoistway; lungisa isikhungo se-sill ukuze sifane nendawo yokungena nokuphuma, futhi umaka isikhungo se-sill; lungisa izinga le-sill libe ngaphansi kwe-1/1000; Ingaphezulu ukuze kuvinjwe amanzi ukuthi angangeni ku-hoistway.

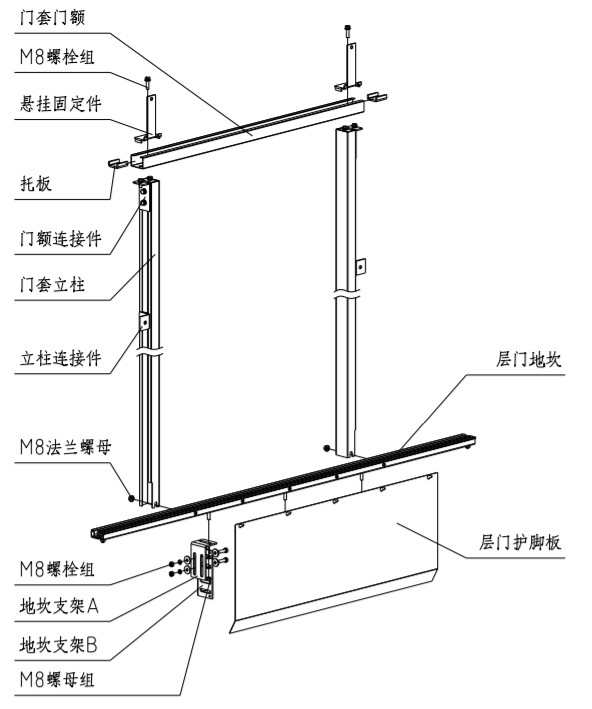

1.2. Hlanganisa ikholomu yekhava yomnyango kanye nomnyango wekhava yomnyango ngezicucu zokuxhuma, bese ufaka izingxenye zokulenga zokulenga; beka umnyango ku-sill, lungisa ukuma kwekholomu yekhava yomnyango ukuze kube ngaphansi kuka-1/1000; isikhungo sekhava yomnyango sihambisana nendawo ephakathi nendawo yokungena kanye nokuphuma kokulinganisa uphawu lwe-Sill center; ubukhulu bendiza yasebunzini eliphansi lesembozo somnyango kanye nendiza engenhla ye-sill ukuphakama komnyango wenetha. Ngemuva kokuthi ukulungiswa sekuqediwe, vala i-M8 flange nut. Ngemva kokulungisa usayizi, lungisa isixhumi sekholomu odongeni.
1.3. Lungisa unogada wezinzwane zomnyango wokufika esinqeni.

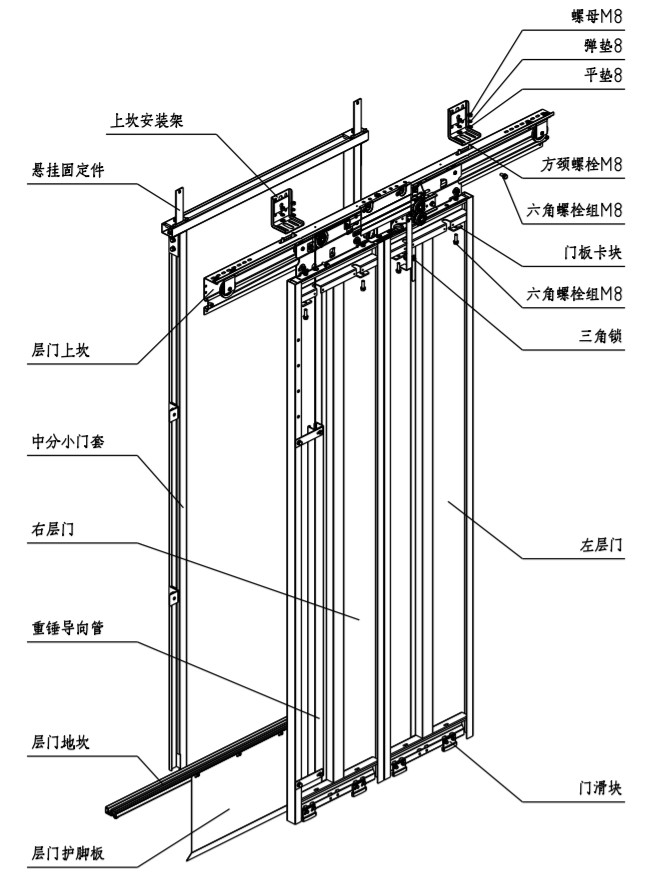

2. Ukufakwa kwedivayisi yomnyango wokufika

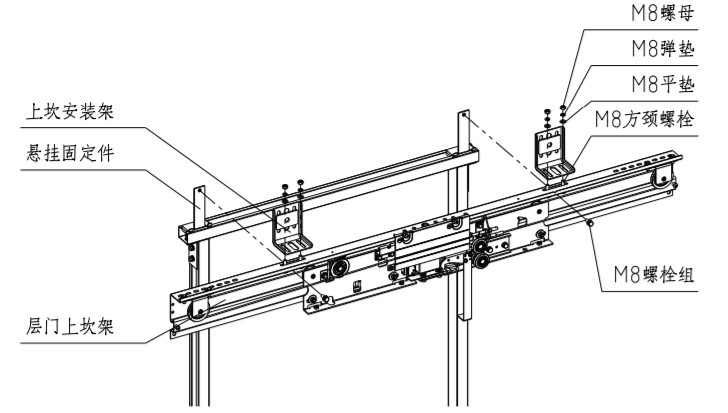

2.1. Qondanisa uhlaka olungaphezulu lwe-sill lomnyango wokufika ne-barb ekugcineni okuphansi kwengxenye yokumisa yokumiswa, futhi ukhiye uhlaka olungaphezulu lwe-sill kanye nengxenye yokumisa yokumisa yomnyango wokufika ngokusebenzisa iqembu le-M8*20 bolt.
2.2. Lungisa uhlaka oluphezulu lwe-sill odongeni lwe-hoistway ngamabhawodi wokunweba noma amabhawodi adlula odongeni. Ifreyimu yokufaka i-sill ephezulu kanye nesicabha sokuhlala esingaphezulu sixhunywe ngamabholithi entamo yesikwele angu-M8.
2.3. Lungisa i-sill engaphezulu yomnyango wokufika kwesokunxele nakwesokudla ukuze wenze isikhungo somnyango sivuleke kanye nendawo emaphakathi yokungena nokuphuma ihambisane.
2.4. Lungisa ukuma kwephansi ledivayisi yomnyango wokumisa. Lungisa ukuma kwephansi lensiza yesicabha sokuhlala ku-±0.5mm ngokubeka umugqa oqondile noma ukuthatha isivalo somnyango wemoto njengereferensi.
2.5 Ngemva kokubuyekeza amapharamitha amakhulu okufakwa kohlaka lwe-sill kule minyango yaphansi elandelayo, qinisa wonke amabhawodi okufaka:

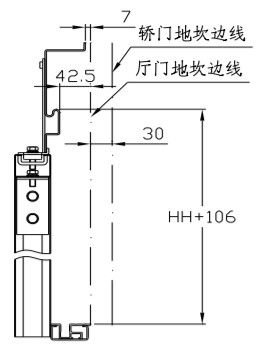

Ubude befreyimu engaphezulu ye-sill yomnyango wokumisa: ibanga eliphakathi kwendawo engaphezulu yesitimela somhlahlandlela wefreyimu engaphezulu yomnyango wokufika kanye nohlaka lomnyango wokumisa ngu-HH+106mm;
Isikhungo sohlaka olungaphezulu lwe-sill yomnyango wokumisa: ukuchezuka phakathi kwesikhungo se-sill esingaphezulu somnyango wokumisa kanye nendawo yokungena nokuphuma ngu-±1mm;
Ibanga phakathi komzila wesitimela ongenhla we-sill guide yomnyango wokuhlalisa kanye ne-sill yomnyango wemoto: ibanga phakathi kwesitimela somhlahlandlela we-sill esingaphezulu somnyango wokufika kanye nesivalo somnyango wokumisa singama-42.5mm, kanti ibanga elisuka ku-sill yomnyango wemoto ngu-72.5mm.
Ubude befreyimu engaphezulu ye-sill yomnyango wokumisa: ibanga eliphakathi kwendawo engaphezulu yesitimela somhlahlandlela wefreyimu engaphezulu yomnyango wokufika kanye nohlaka lomnyango wokumisa ngu-HH+106mm;
Isikhungo sohlaka olungaphezulu lwe-sill yomnyango wokumisa: ukuchezuka phakathi kwesikhungo se-sill esingaphezulu somnyango wokumisa kanye nendawo yokungena nokuphuma ngu-±1mm;
Ibanga phakathi komzila wesitimela ongenhla we-sill guide yomnyango wokuhlalisa kanye ne-sill yomnyango wemoto: ibanga phakathi kwesitimela somhlahlandlela we-sill esingaphezulu somnyango wokufika kanye nesivalo somnyango wokumisa singama-42.5mm, kanti ibanga elisuka ku-sill yomnyango wemoto ngu-72.5mm.
